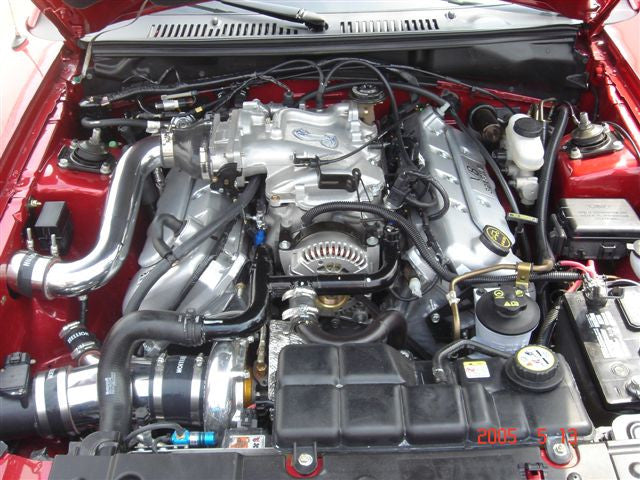

03-04 Mustang Cobra Single Turbo System - 450 to 850 HP

The 2003-2004 Mustang Cobra marked the pinnacle of Mustang Performance. It's stout engine put out nearly 400hp straight from the factory, which quickly earned the Cobra a coveted spot on the list of extreme street cars. If you want the ultimate in power production and performance for your '03-'04 Cobra install a Hellion Power Systems turbo kit and watch the numbers climb. Power anywhere from 450-800 hp is available from the standard system, with upgrades available for even more power, all while retaining the accessories and without cutting the body.A complete list of these upgrades, and pricing, can be seen below. 1 (1) T76 S-Trim .96AR, F1 Turbine 2 (1) Turbosmart Ultragate Wastegate 5 (1) TurboXS Race Bypass 6 (1) intercooler 24x6x3 (air to air) 7 (1) k-member, a-arms, coil over kit 8 (1) Caster Camber Plates 9 (8) Spark plugs 10 (1) K and N air filter RU 5121 12 (1) coolant can support rod and nut powdercoated black 13 (1) intercooler support bracket/pwd black 14 (1) Turbo bracket/ powdercoated black For Large Turbo w/ cut 15 (1) Main turbo inlet--- stainless 16 (1) Crossover pipe, 17 (1) Downpipe, Tube weld flange stainless, Wastegate flange stainless 18 (1) Exhaust double barrel 19 (1) Cat or straight pipe 20 (1) y-pipe 21 (1) small wastegate pipe 22 (1) intercooler pipe 1 23 (1) intercooler pipe 2 24 (1) intercooler pipe 3 25 (1) boost inlet pipe/polished 26 (1) radiator pipe 1 1/4 polished 27 (1) Turbo 4" inlet pipe/polished 28 (1) 99-01 Power Steering Bracket (modified) 29 (1) 03/04 CobraWater Tube (coated)(modified) 30 (1) insert for manifold 31 (1) HeatShield 32 (1) heat wrap roll 33 (2) fan heat shields 6x3 34 (2) heat shields for double barrel 4x5 35 (8) metal zip ties 14" long 36 (10) zip ties for ps hose retention/BK 37 (1) Mass air meter adapter flange, hardware 38 (11) 2.5" T-bolt clamps 39 (1) 3 inch v-band clamp for turbo outlet 40 (1) adel clamp for a/c line 5/16" hole 41 (1) 1 5/8" clamp for wastegate 42 (2) 2 inch hose clamps for radiator hose 26-60mm 43 (2) breather hose clamps 1/2" 44 (4) 4 to 4.5 inch hose clamps 45 (2) hose clamps 27-50mm/bypass 46 (4) 3/4 inch hose clamps/idle hoses 47 (1) 4"/2" long silicone hose pieces 48 (1) 4X3.5 silicone hose 49 (5) 2.5 inch silicone hose pieces 3" long 50 (1) 03/04 Cobra Intake Hose 2.5 X Oval 51 (2) 1 3/8" x 3" silicone hose pieces, cut to 2.5" 52 (2) 1 1/4 X 2 3/4" long 53 (1) #10 straight hose fitting 54 (1) #10 90 degree hose fitting 55 (1) oil outlet flange 56 (1) #10 oil outlet extension fitting 57 (1) #10 line 1 foot each/ 25 ft total cut into 1 ft lengths 58 (1) 3/8 to #10 oil return fitting 59 (1) black breather hose 1/2"--21" long 60 (1) punch for oil pan 61 (1) 3 ft 7/32 vacuum line for bypass 62 (1) brass tee 63 (2) ps line splices 3/8" 64 (1) ps line hose 10"each/28 ft 65 (4) ps line high pressure clamps 3/8" 66 (1) oil feed line 47" #4 67 (1) 1/4" pipe to #4 90 degree oil feed fitting 68 (1) 1/8" pipe to #4 90 degree oil feed fitting. 69 (2) metric socket head bolts for wastegate 1" long M8 70 (2) 5/16" socket head bolts for wastegate 1" long 71 (2) M8x30mm for support bracket 72 (2) metric bolts from intercooler to radiator support M6mm x 30mm long 73 (4) washers for metric bolts M6 74 (3) 1/4" x 3/4" long bolt 75 (3) 1/4" nylock nut 76 (6) 1/4" washers 77 (1) 5/16" bolt to secure adel clamp to boost hose 1/2"long 78 (6) 5/16" washer 79 (2) M8 x 20mm Metric bolts for oil drain to turbo 80 (8) M8 washers 81 (2) 10 mm 50mm long metric bolt for manifold 82 (2) 10 mm washers 83 (1) 3/8 pipe tap 84 (4) 3/8" bolts, nuts, and washers for turbo to turbine inlet 1.5" long 85 (2) 3/8" bolts and washers for crossover connection 1.75" long 86 (3) 3 inch torq clamps for exhaust 87 (1) rubber dog bone 1.75" center to center 88 (1) hanger for exhaust 89 (4) 3/8 bolts, nuts, and washers for y-pipe to mufflers 2.5" long 90 (2) turbo bracket spacers aluminum 91 (3) 5/16 bolts, nuts, and washers for intercooler support bracket 3/4" long, exhaust hanger Maximum Motorsports K-Member Upgrade Includes: MM Hellion K-member MM Front control arms MM Front coil over conversion kit w/hypercoil springs MM Aluminum steering rack bushings MM Caster camber plates MM Ajustable tie rod ends This kit includes the caster camber plates, a-arms, and coil over with the K-Member. If Package is deleted, none of the merchandise in K-member kit will be received. (Customer understands that 99-04 systems were designed around the UPR tubular K-member Kit and therefore, using any other manufacturer may complicate installation of the Hellion Turbo System and change the intended design. Parts required to install the 03-04 Cobra kit 99-01 Alternator #YR3210346AA Alternator Bracket #XR3Z-10153-AB 99-01 Cobra Intake (Lower) #YR3Z9424BA (Upper) #XR3Z9424AA 99-01 Serpentine Belt Motorcraft # JK6 - 941 99-01 Throttle Cable Bracket & Cable Bracket # XR3Z9728CA Cable #1R3Z9A758CA Alternator Wires to extend . pigtail #1U2Z14S411UA *If keeping EGR is desired, need 99-01 EGR tube # XR3Z9D477DB
